Soil Stabilization Technology

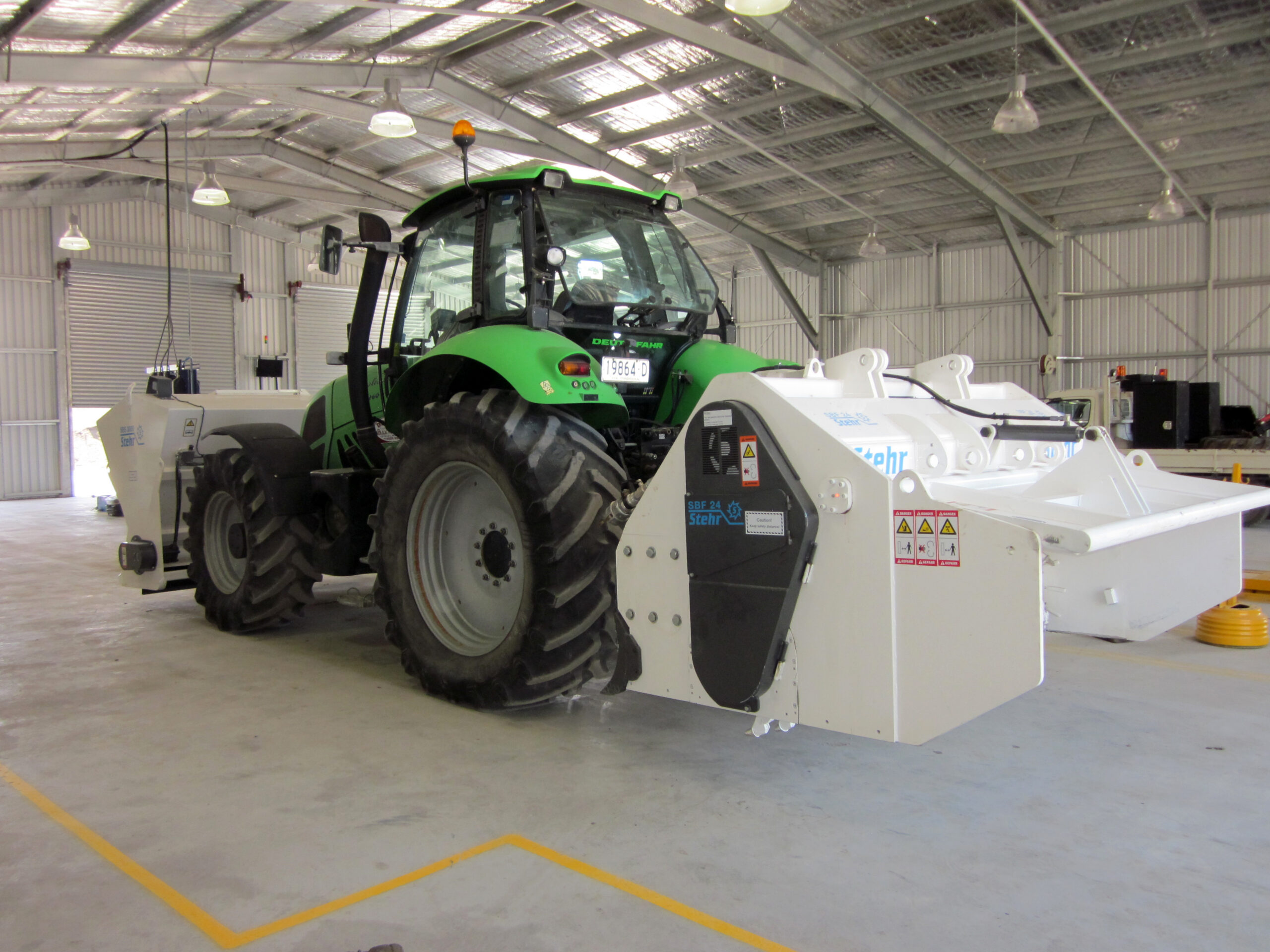

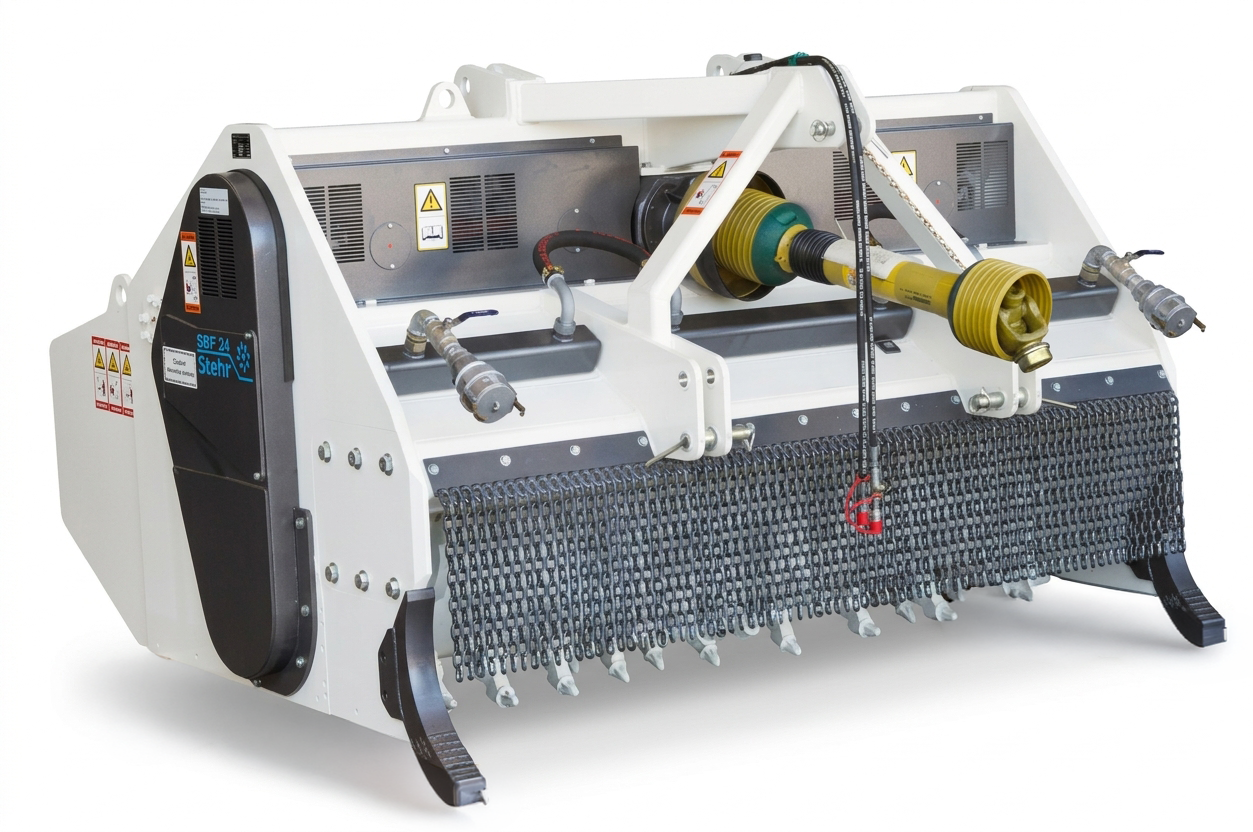

Soil Stabilizer SBF 24

Highest milling performance thanks to innovative drive directly in the milling rotor

Technical Data

Specifications SBF 24

Milling width 2,400 mm
Max. milling depth 500 mm
Weight 4,670 kg
Rotor - Ø / Speed 800 mm / 310 rpm
Drive / PTO PTO shaft / 1,000 rpm
Power requirement Min. 280 HP / Max. 390 HP

Version with water spray bar

Efficiency & Drive Concept

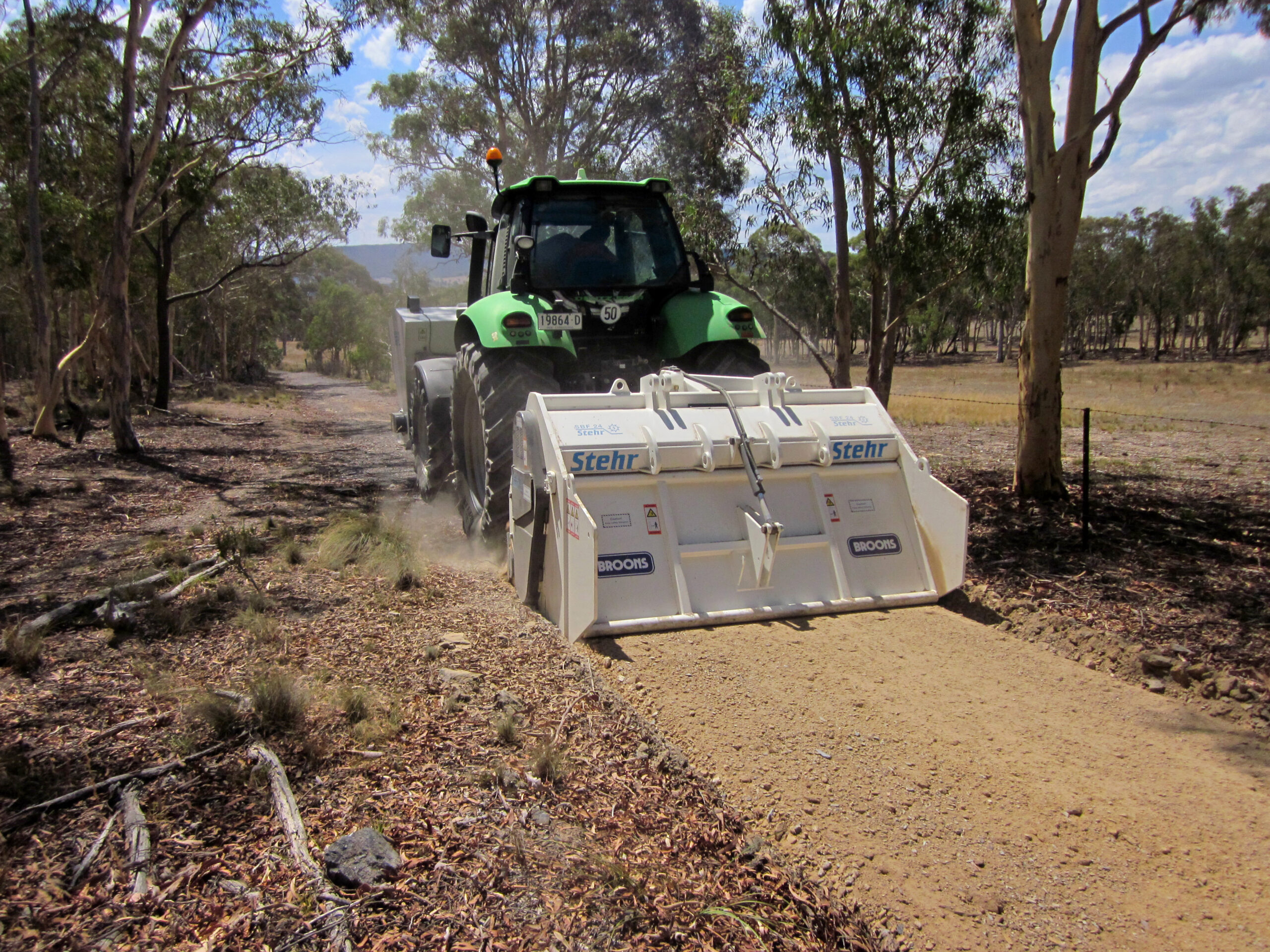

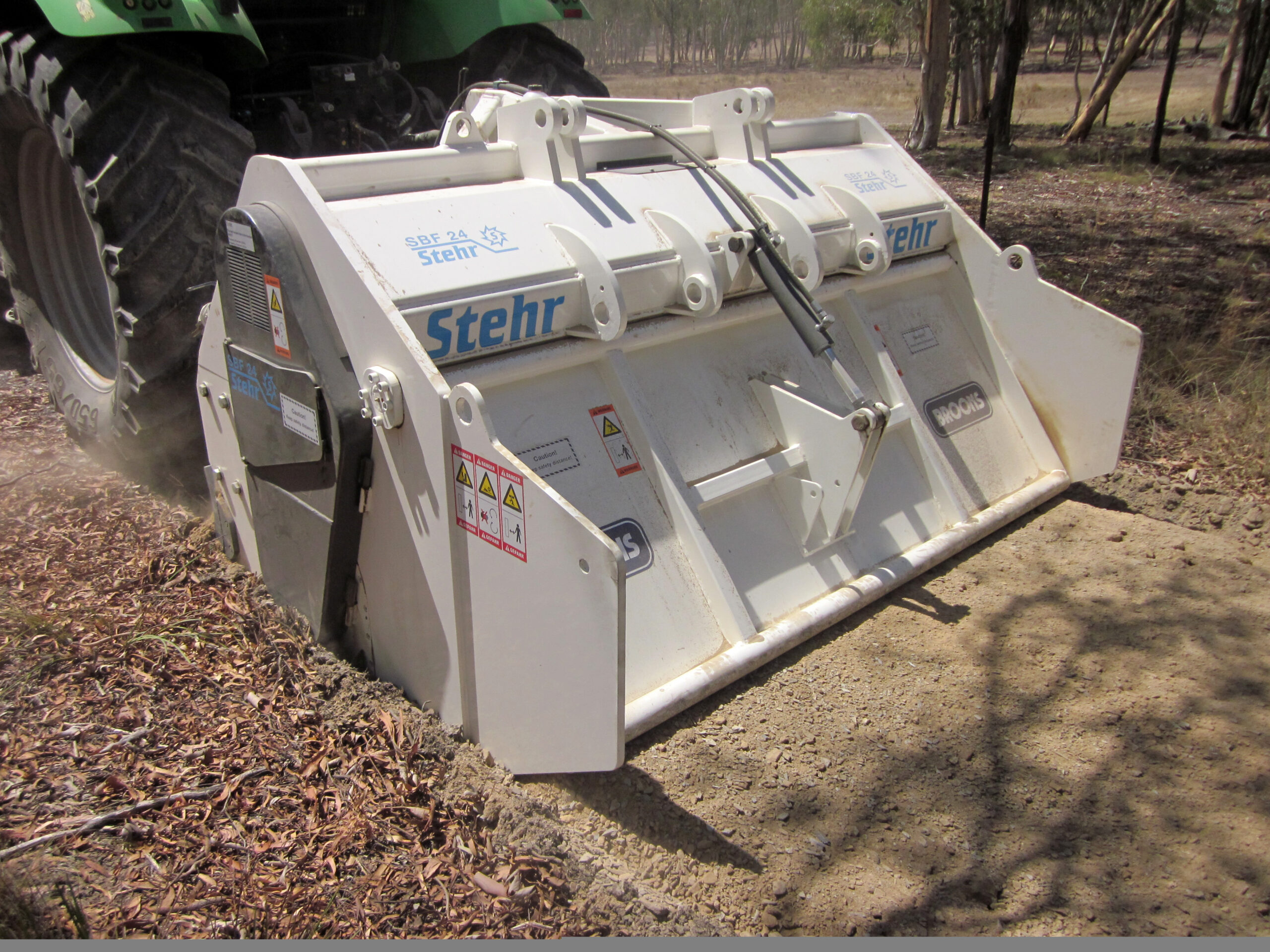

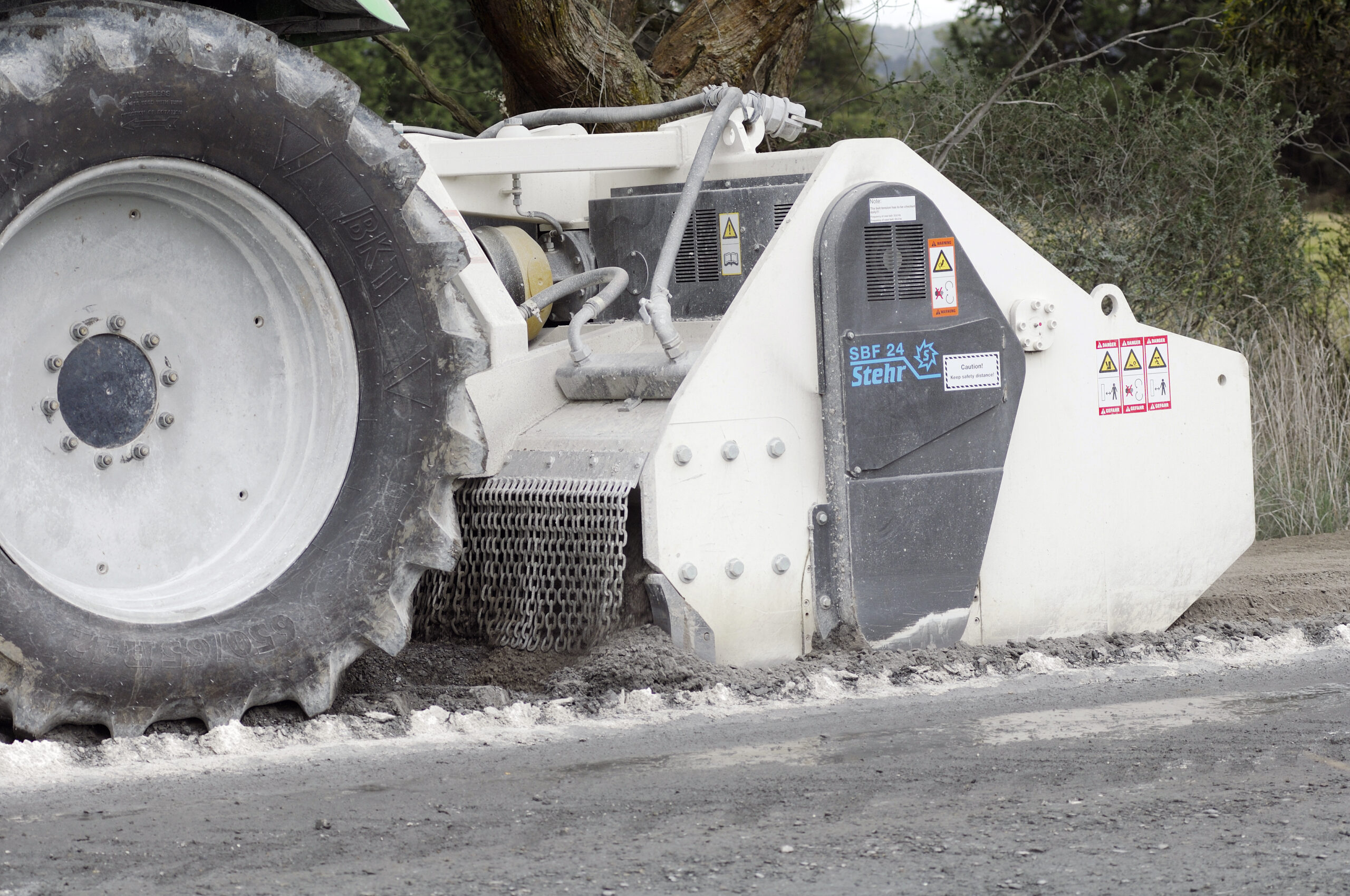

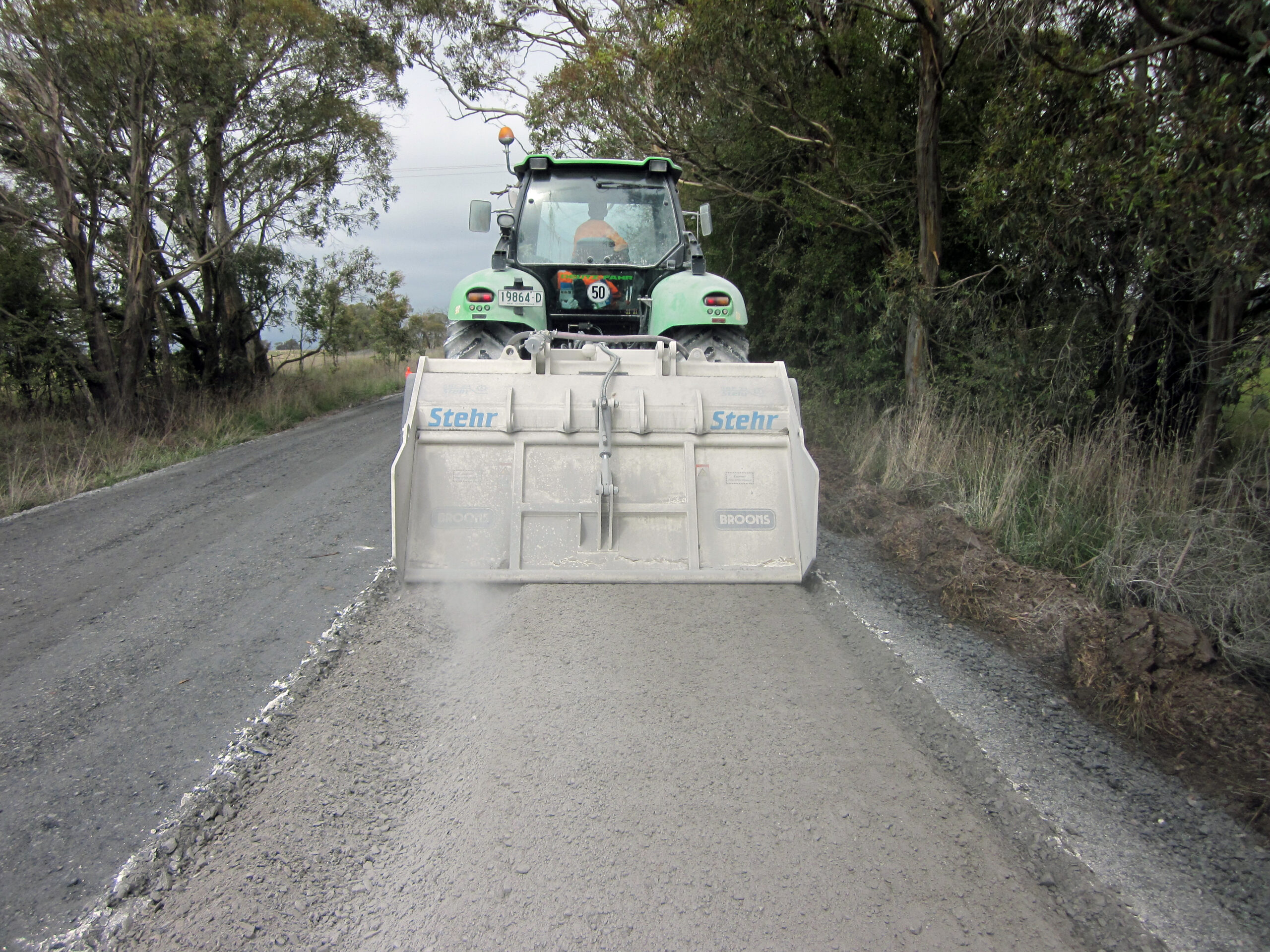

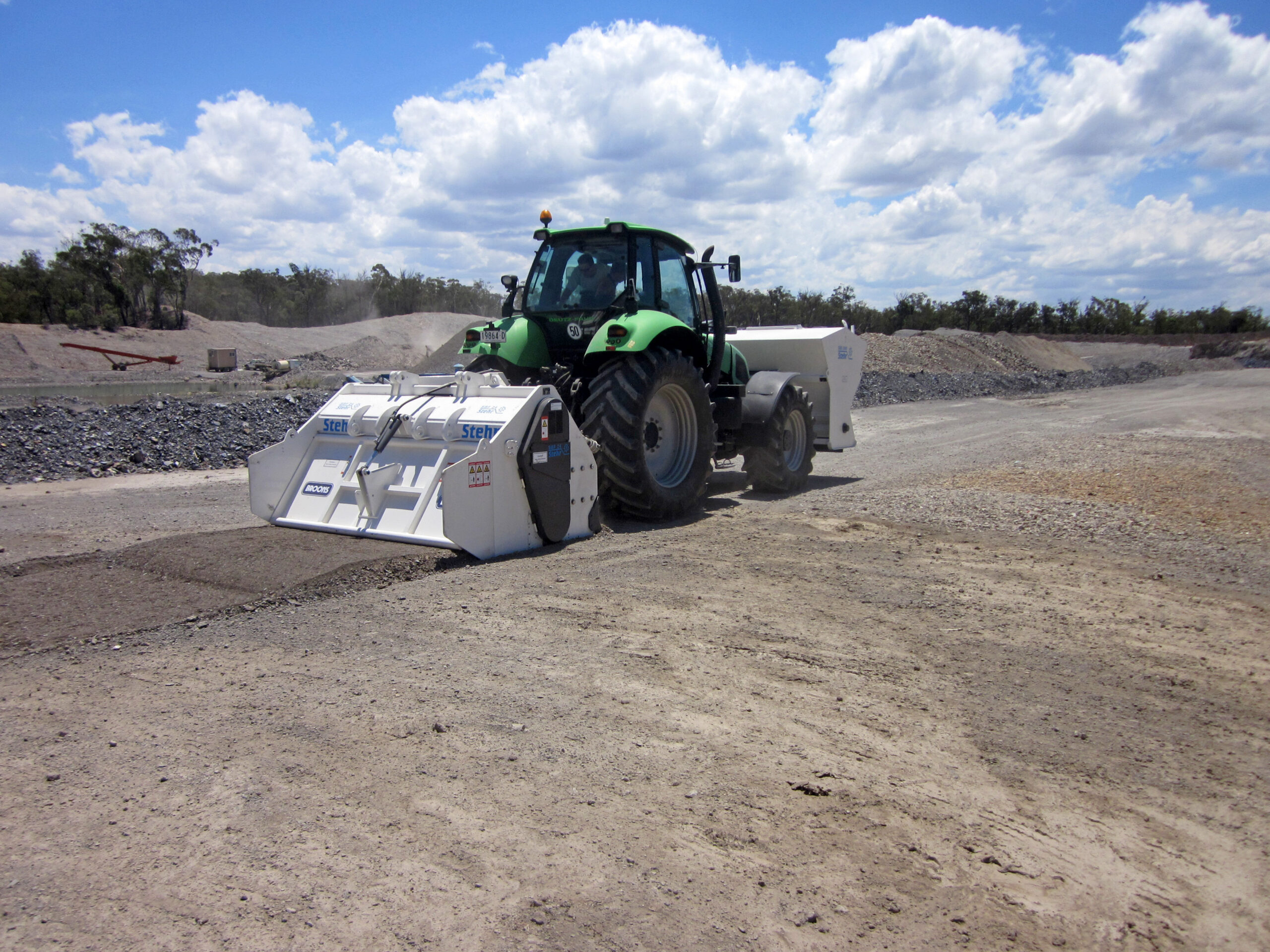

The Stehr soil stabilization milling machine SBF 24 was developed for extreme requirements and maximum milling depths of up to 500 mm. The unique drive concept ensures almost loss-free power transmission from the carrier vehicle directly to the rotor.

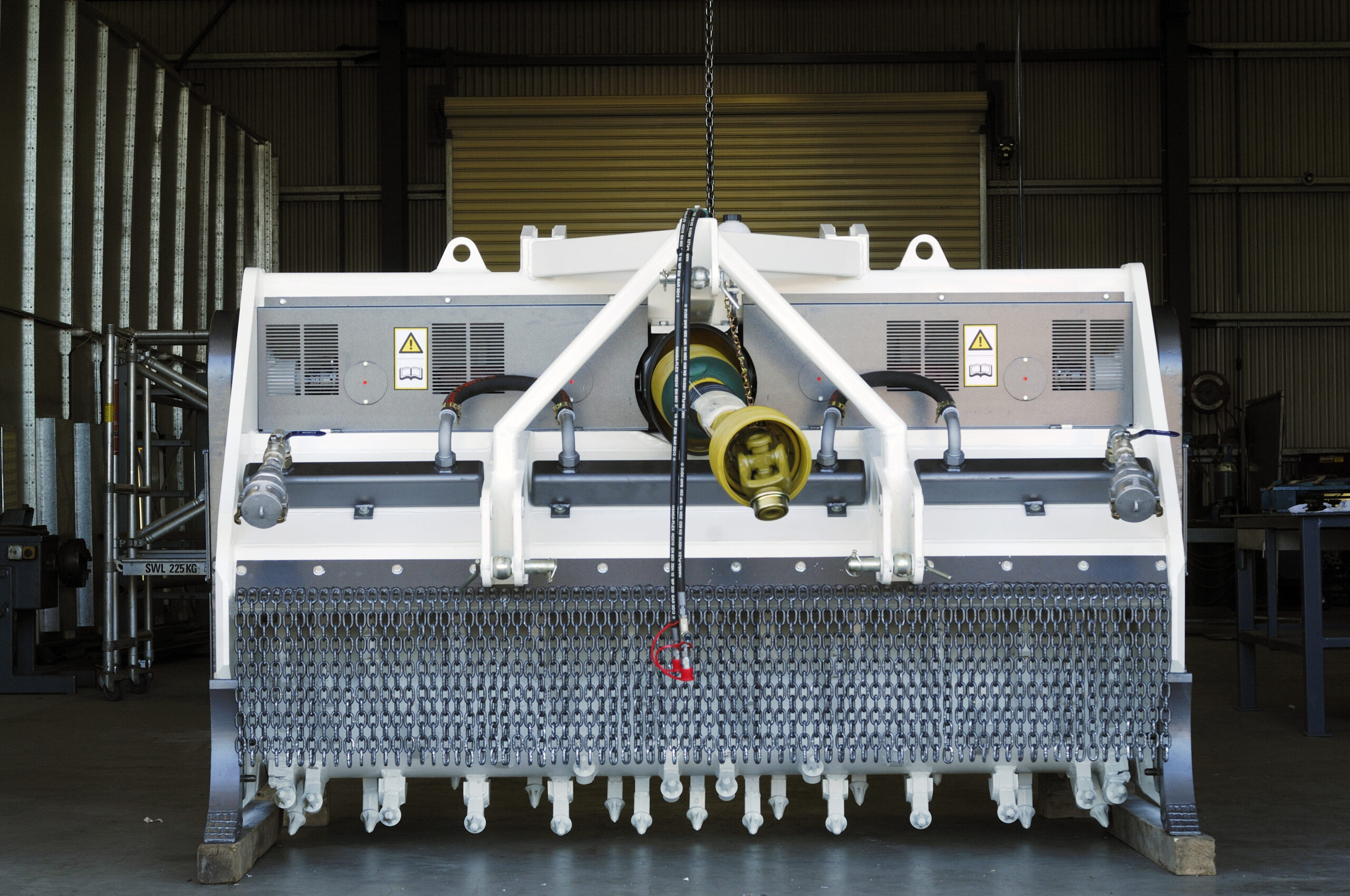

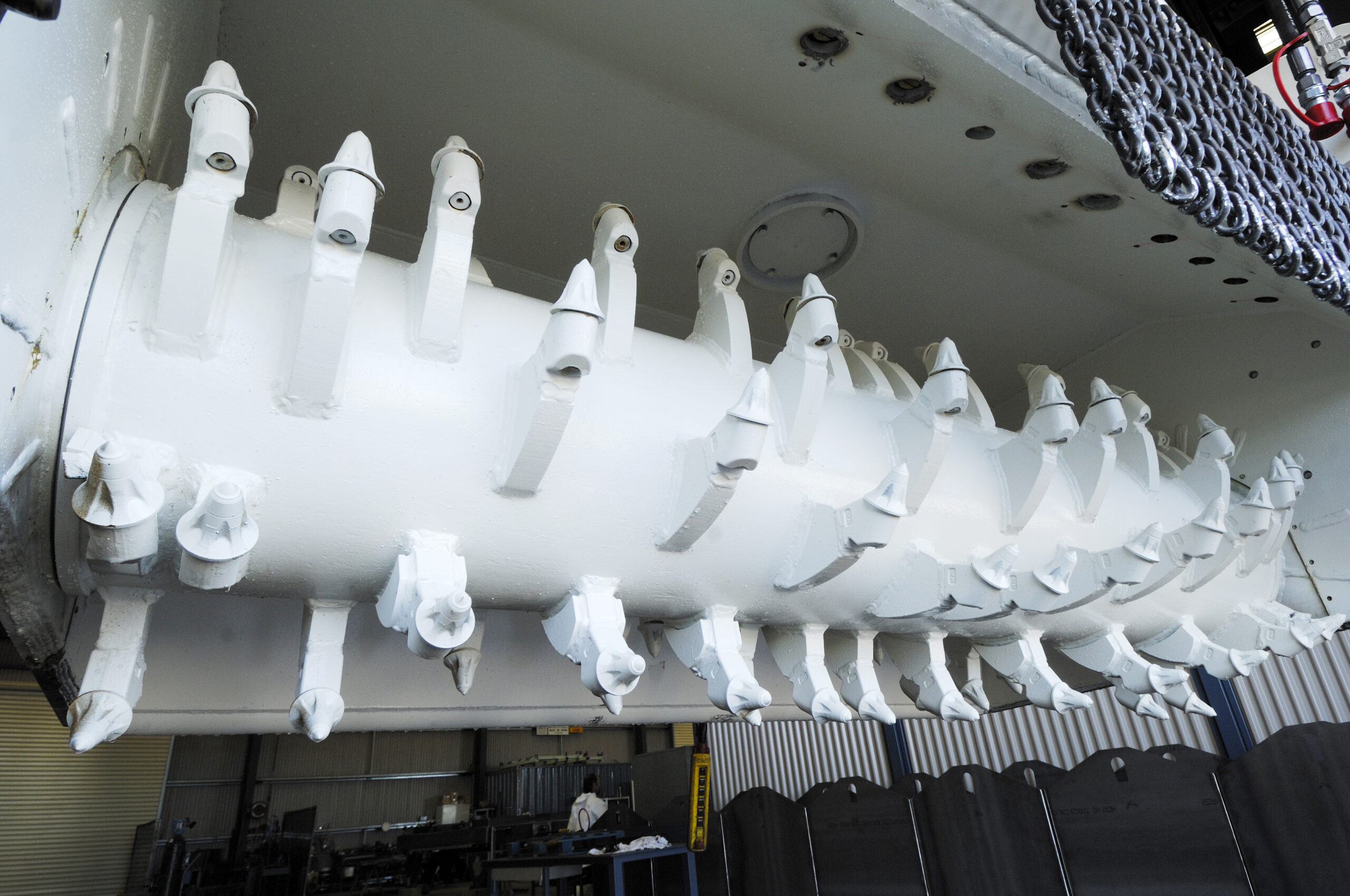

Direct torque generation in the milling rotor via an integrated planetary gear

Power transmission

Double-sided power belt (high-speed, reduced torque) instead of a classic lateral spur gear. This design prevents energy losses and increases service life.
Rear PTO

Requires a rear PTO with 1,000 rpm for power transmission.
Traction drive

The carrier vehicle should have a continuously variable traction drive (0 – Vmax).
Recommended power

Due to the enormous milling depth, a power of 280 HP is recommended for optimal operation.
Additional equipment

The machine is optionally available with an integrated water spray bar.
