soil stabilising mixer SBF 24 L

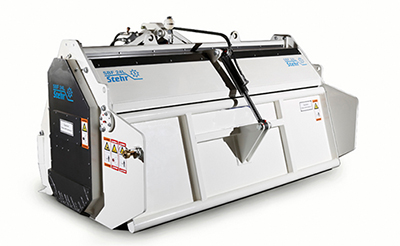

Stehr SBF 24 L

Technical data

  • Power requirement carrier: 150 - 200 hp
  • Weight: 2.550 kg
  • cutting depth: max. 400 mm
  • cutting width: 2.400 mm


energy efficiency

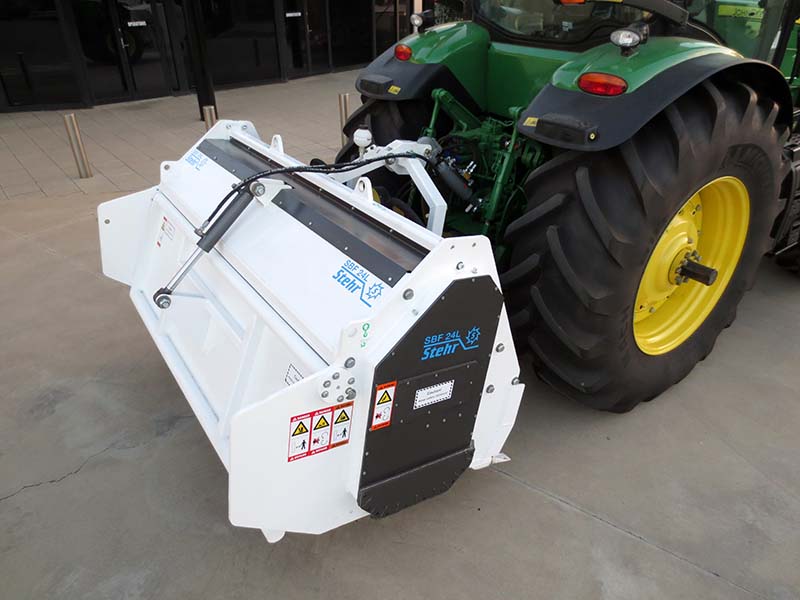

image impressions

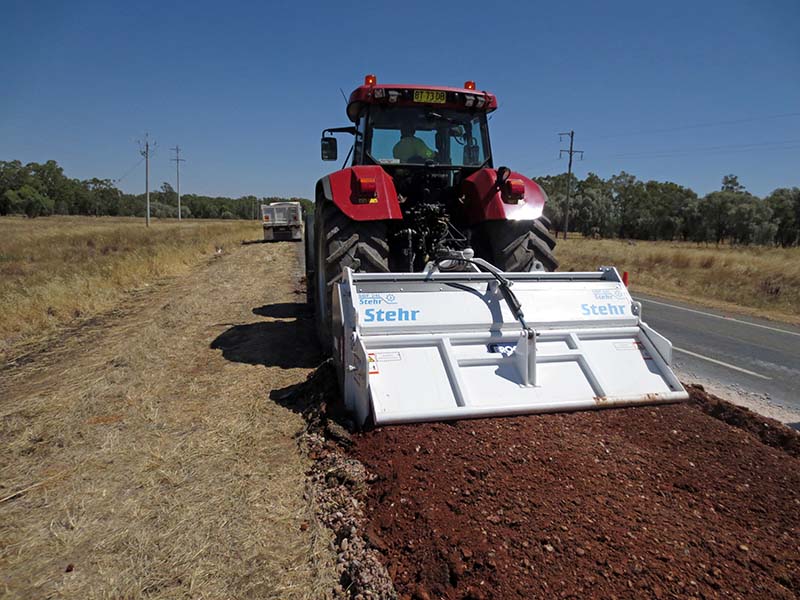

practical images soil stabilising mixer SBF 24 L from various construction sites..

Drive concept

The power from the tractor's PTO shaft to the cutting rotor is not transmitted, as is usually the case, via power-absorbing side spur gears, but via power belts arranged on both sides, which run at high speed and therefore only have to transmit a relatively low torque. Torque build-up is only achieved via the planetary gear when the torque is needed: in the cutting rotor.

Suitable tractors

Prerequisite is a rear PTO output with 1000 rpm as well as a creeper gear (Vmin=300-500 m /h) or optimally a continuously variable transmission (“CVT”).
For maximum cutting depth even under difficult soil conditions, we recommend 180 HP
